Washing Machine Overflow Water Damage & Reconstruction in Chino, CA

A real water damage restoration project in Chino, CA caused by a second-floor washing machine overflow. See how 911 Restoration of Riverside County handled moisture detection, mitigation, structural drying, and reconstruction.

LocationChino, CA
Loss TypeSecond-Floor Washing Machine Water Damage
ClassificationCategory 2 Water
Infrared inspection for hidden water damage in Chino CA home
What Happened

Project Overview

Source / Cause

Water loss originating from a washing machine located on the second floor, with water migrating into the structure and affecting areas below.

Affected Areas & Materials

Second-floor laundry area, garage ceiling, ceiling drywall, insulation, wall materials, wood framing, and surrounding building materials affected by water migration.

What We Found

Inspection identified water damage caused by a second-floor washing machine overflow during an active load cycle. Water migrated through the upper-level flooring and into the garage ceiling and surrounding building materials below. Infrared screening and moisture readings were used to help identify the extent of the affected areas and establish the mitigation scope.

Work Performed

911 Restoration of Riverside County protected unaffected finishes, documented moisture conditions, and performed controlled removal of affected drywall, insulation, and other water-damaged materials as necessary. Exposed structural areas were cleaned and professional drying equipment was installed. Air movement and dehumidification were used while drying conditions were monitored. After mitigation and structural drying were completed, the affected areas were reconstructed.

How the Project Was Documented

Infrared screening, moisture readings, initial condition photos, mitigation progress photos, drying equipment documentation, drying-condition monitoring, post-mitigation photos, and completed reconstruction photos.

Outcome / Next Step

The affected materials were removed as necessary and the remaining structure was dried to appropriate conditions. After mitigation was completed, 911 Restoration of Riverside County completed the reconstruction phase and restored the affected garage and surrounding areas to a finished condition.

Real Job Documentation

Project Evidence & Progress Photos

These photos document the actual restoration process for this project, from initial conditions through mitigation, drying, and repairs when applicable.

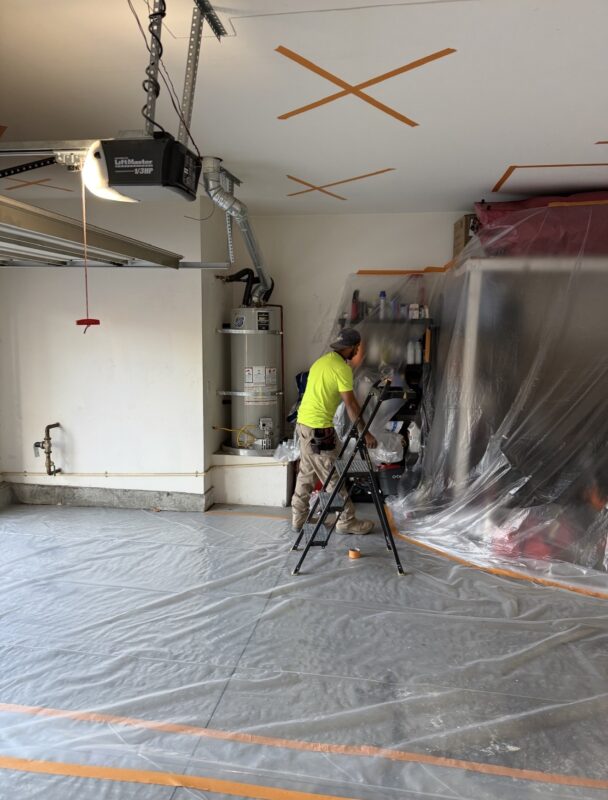

Floor protection before water damage mitigation in Chino CA
Before / Initial Damage

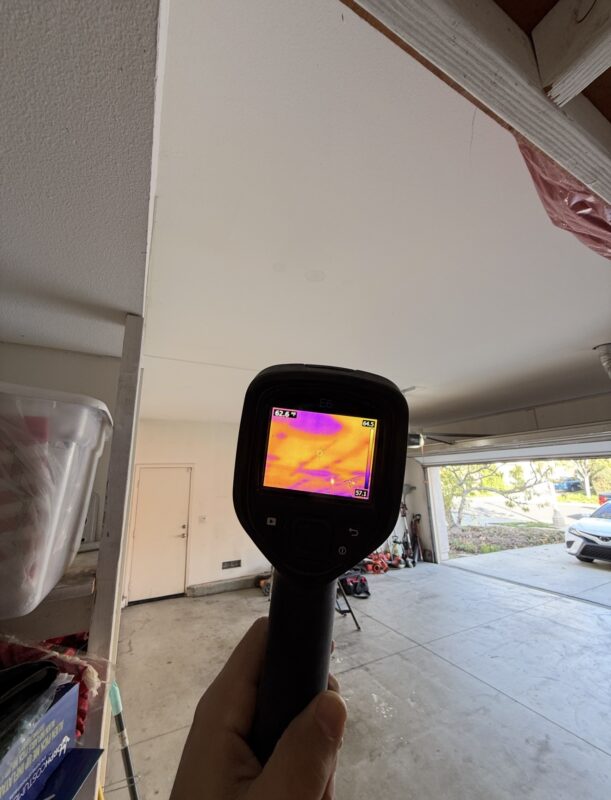

Infrared inspection for hidden water damage in Chino CA home
Moisture Detection / Infrared

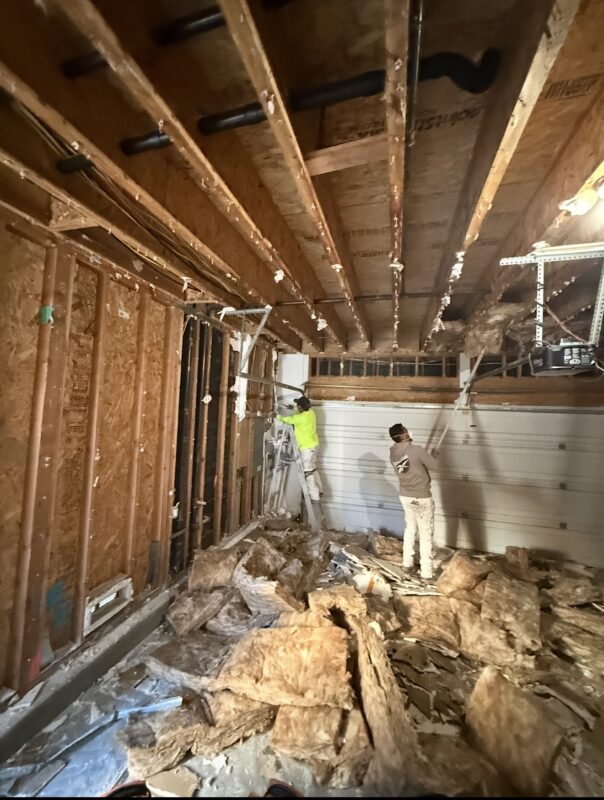

Water damage demolition and material removal in Chino CA home
Mitigation / Removal

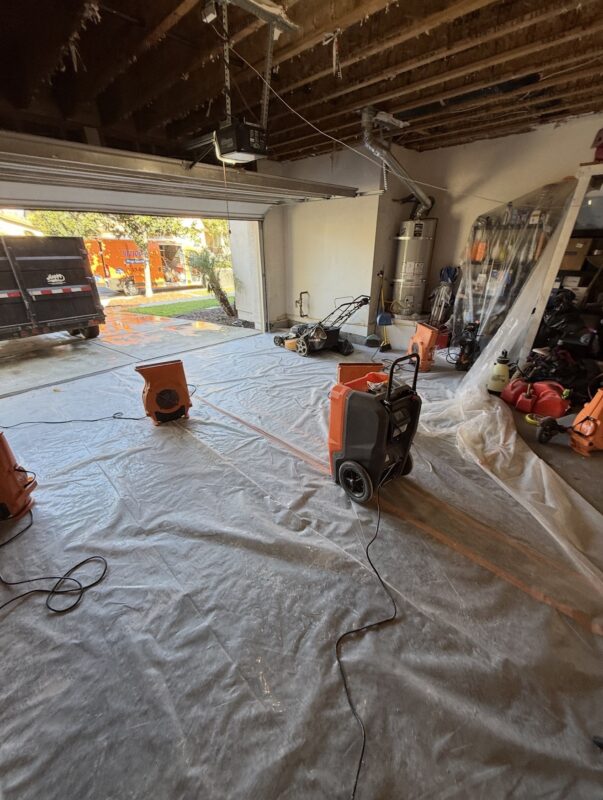

Structural drying equipment in Chino CA home after water damage
Drying / Equipment

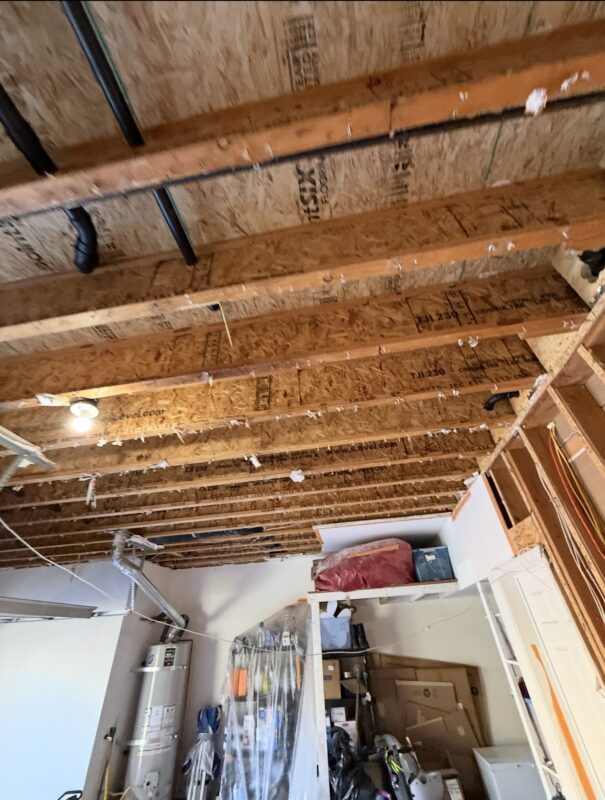

Exposed framing after water damage mitigation in Chino CA home
After Mitigation

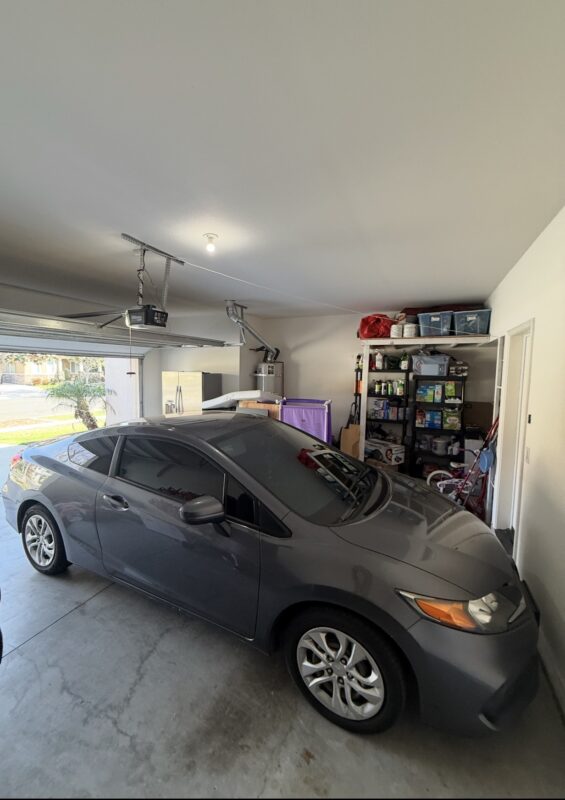

Finished garage reconstruction after water damage in Chino CA
Reconstruction / Finished
Why This Documentation Matters

Showing the Conditions, the Work, and the Result

Real project documentation helps property owners understand what was affected and why specific restoration steps were taken.

01

Inspect

Identify visible damage and evaluate where moisture, contamination, soot, smoke, or other conditions may have spread.

02

Confirm

Use appropriate inspection tools and readings to help confirm conditions instead of relying on appearance alone.

03

Mitigate

Remove or address affected materials, control the work area, dry or clean the structure, and monitor progress.

04

Restore

Document completion and continue into reconstruction when damaged finishes or building materials require repair.
